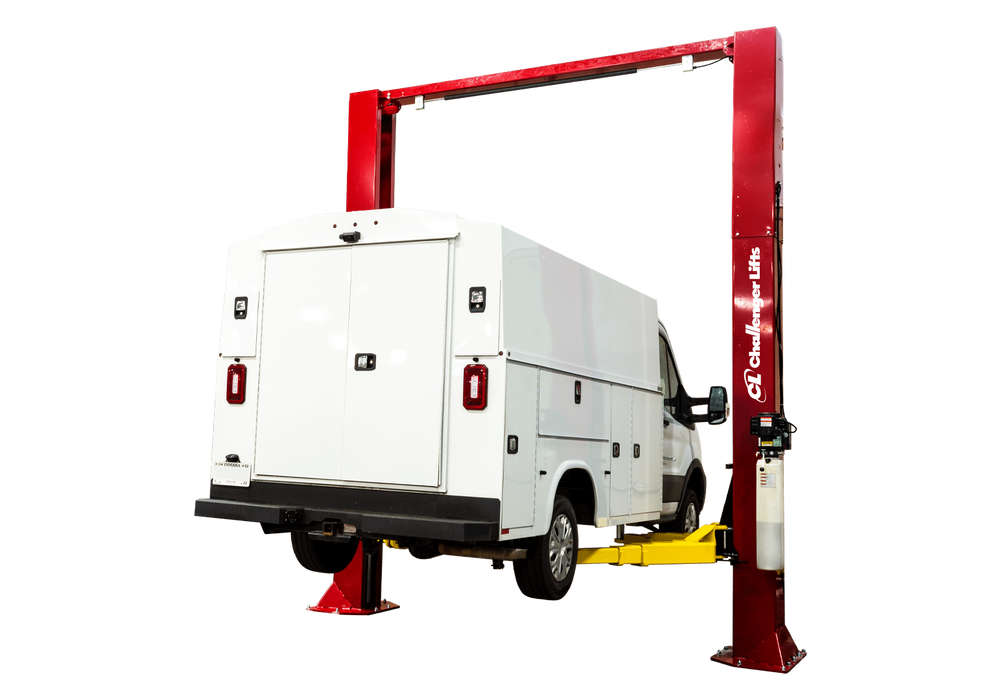

CHALLENGER 2-POST LIFT MODEL CL163S 16K HEAVY DUTY ADJUSTABLE LIFT
LEAD TIME 21 BUSINESS DAYS
ALI CERTIFIED LIFT
Challenger’s Heavy-Duty Two-Post lifts boast optimum flexibility with a lift designed from the anchors to meet ALI/ANSI safety standards. These lifts have a capacity of 16,000lbs or 20,000lbs and can lift everything from compact cars to tall, heavy trucks. Altogether, this lift will withstand the toughest of fleet maintenance needs.
The CL16 has the capacity and height to symmetrically lift service trucks and 3-stage front and rear arms to lift smaller vehicles asymmetrically. Additionally, featuring low-profile pickup pads and an adjustable width and height. 2ft height extensions are available for additional clearance.
FEATURES
- Engineered to be wider, taller, and stronger. Ready to tackle the heaviest vehicles in any fleet.
- Single-point air actuated lock release allows the technician to disengage both columns simultaneously.
- Oversized 5” diameter steel pulley and heavy-duty 3/8” cable reduces stress on equalization system and increases cable life.
- 60” lifting carriage design increases lift life.
- Adjustable width and symmetrical design allow easy access to the vehicle’s interior.
- Dual integrated rubber door guards to prevent door damage.
FINANCING
Lift Now,
Pay Over Time
with the Synchrony Car Care™ Credit Card.
Convenient monthly payments make your equipment purchase simple.
No Interest if Paid in Full Within 6 or 12 Months 1
On purchases of $199-$749.99 for 6 Months or $750 or more for 12 Months made with the Synchrony Car Care credit card. Interest will be charged to your account from the purchase date if the promotional balance is not paid in full within 6 or 12 Months. Minimum monthly payments required.
SPECIFICATION
Lifting Capacity10,000 lbsLift ConfigurationSymmetric and AsymmetricArm Configuration3-Stage Versymmetric® Front/2-Stage RearMax Load Per Arm2500 lbsRise Height (screw pads at highest position)74.75"Overall HeightStandard: 143.875"Extended Height: 167.875"Overall Width131.625"Drive-Thru Clearance98.375"Floor to Overhead SwitchStandard: 137"Extended Height: 161"Front Arm Reach22.3125"-39.375"Rear Arm Reach38.375"-55.375"Showing 1 to 10 of 15 entries
SHIPPING
Shipping Policy Estimated Processing & Shipping Times for Orders.
Your Lift ships on a Flat bed Freight Truck company. It is taken to your location on a 48 foot semi truck. Please note the following before making your purchase:
- You are responsilbe for unloading the lift from the truck. The truck driver does not unload it for you.
- Lift Gate delivery service is not available for auto lifts.
- You cannot unload an lift from the truck by hand. You must have machinery that can lift the full weight on your auto lift for unloading from the truck. Fork Lift.
- If you cannot unload from a truck, we can ship to our carrier's nearest freight terminal for you to pickup with a trailer or moving van.
- You are responsible for calling the freight company to make a delivery appointment. We don't know your schedule so we can't do this for you.
When your lift ships, we will email you the carrier information and tracking number. Freight shipping is slower than small package shipping and can take 12-21 days depending on your location so please be patient.
WARRANTY
LIMITED WARRANTY
Challenger Lifts, Inc. lifts are guaranteed to the original owner. Challenger Lifts, Inc. shall repair or replace, at Challenger Lifts, Inc.option, for the full warranty period those parts that prove upon inspection to be defective and pay for reasonable costs of transportation and/or labor for replacement of said parts for the warranty period stated below. This warranty shall not apply unless the product is installed, used and maintained according to Challenger Lifts, Inc.specifications set forth in Challenger Lifts, Inc. installation, operation, and maintenance instructions. Use of any unapproved parts or accessories will void your warranty. This limited warranty extends only to the original purchaser and is not transferable. This warranty is valid only if the product has been registered with Challenger Lifts, Inc., www.challengerlifts.com.
This warranty does not cover normal maintenance or adjustments, damage or malfunction caused by improper handling, installation, abuse, misuse, negligence, carelessness of operation, or normal wear and tear. In addition, this warranty does not cover equipment when repairs have been attempted or made by anyone other than a Challenger Lifts, Inc. authorized service representative.
This warranty is exclusive and is in lieu of all other warranties expressed or implied including any implied warranty of fitness for a particular purpose, which implied warranties are expressly excluded. No employee, agent, representative, dealer or other person or entity is authorized to give any warranties of any nature on behalf of Challenger Lifts, Inc.
The remedies described are exclusive and in no event shall Challenger Lifts, Inc. Inc. be liable for special, consequential or incidental damages for the breach of or delay in performance of the warranty. This warranty shall be governed by the Commonwealth of Kentucky, and shall be subject to the exclusive jurisdiction of the Court in the Commonwealth of Kentucky in the County of Jefferson.
Functional parts are considered the power units, cylinders, sheaves, sheave pins, hoses, hydraulic & pneumatic fittings, cables, adapters, latches, valves, and controls.
Structural parts are considered the carriage, columns, column extensions, overhead beams, arms, cross beams, runways, wheel stops, ramps, bolsters, sync rails, and plungers.
Note: Warranty registration must be completed online at https://www.challengerlifts.com/register-your-lift/ or warranty period will beging from invoice date of lift purchase.
