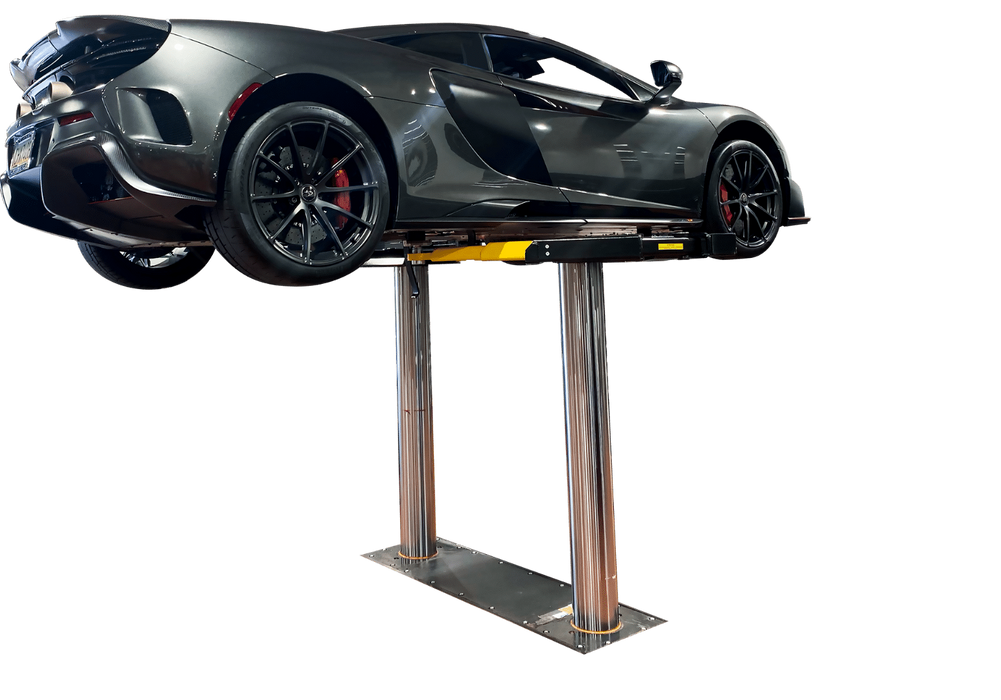

• 10,000 lb. lift capacity
• 3-stage front and 3-stage rear arms provide access to the lift points of a wide range of cars and trucks, maximizing revenue potential
• Also available with a drive-on style pad (XP9) to aid in quick vehicle spotting for express bays
• 8 1/2” diameter chrome pistons provide greater stability under load
• Chrome non-breathing ram style cylinder provides for longer lift life
• Enhanced raised wiper at top and bottom of bearing provides better grease retention and minimizes contaminates from entering into bearings
• Long bearing contact provides increased stability
• Mechanical lock engages every 3″ allowing ergonomic working height for technicians to increase productivity and minimize fatigue
• Stainless steel air lock release cylinder promotes longer working life with its corrosion resistant design

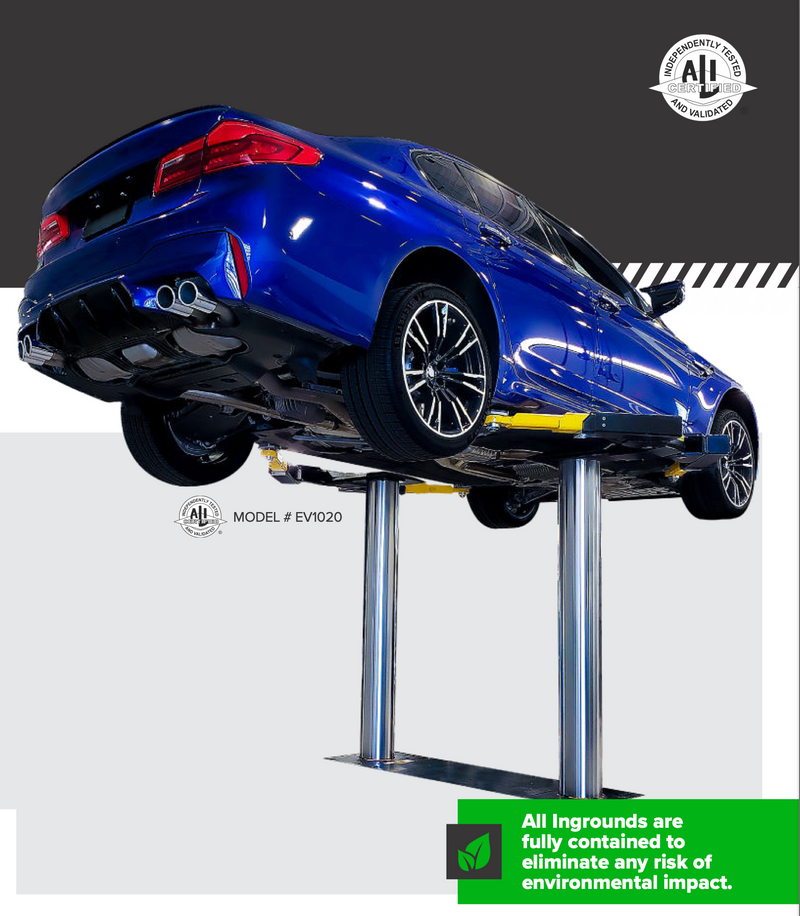

• Fully-contained and sealed recycled polymer cassette tub eliminates risk of hydraulic fluid seeping into the ground

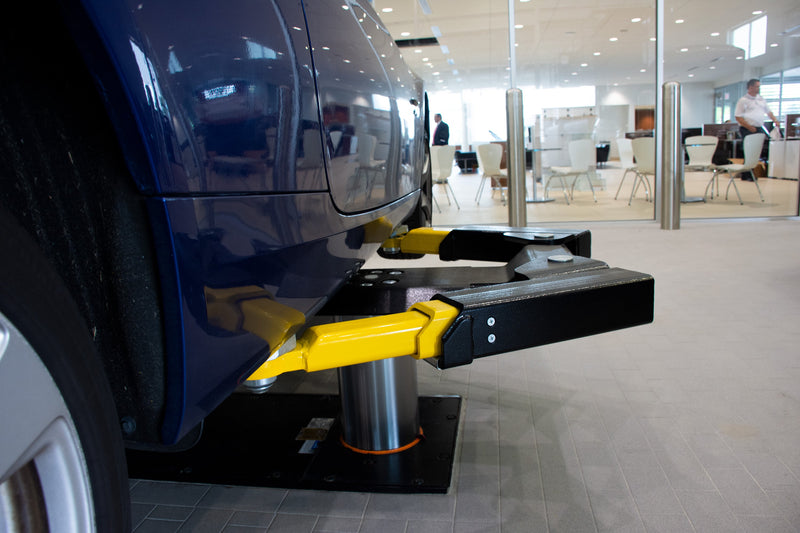

• Premium double telescoping screw pads adjust to multiple heights minimizing the need for adapters
• 87″ drive-thru accommodates wider vehicles, minimizes tire damage and provides for easy drive-on
• Quick Cycle™ models reduce vehicle travel time by 30 percent
• Wide range of upgrades to further customize your fleet
• Premium powder coat finish on bolsters and arms provides long-lasting durability

Lift Now,
Pay Over Time

with the Synchrony Car Care™ Credit Card.

Convenient monthly payments make your equipment purchase simple.

No Interest if Paid in Full Within 6 or 12 Months 1

On purchases of $199-$749.99 for 6 Months or $750 or more for 12 Months made with the Synchrony Car Care credit card. Interest will be charged to your account from the purchase date if the promotional balance is not paid in full within 6 or 12 Months. Minimum monthly payments required.

APPLY NOW

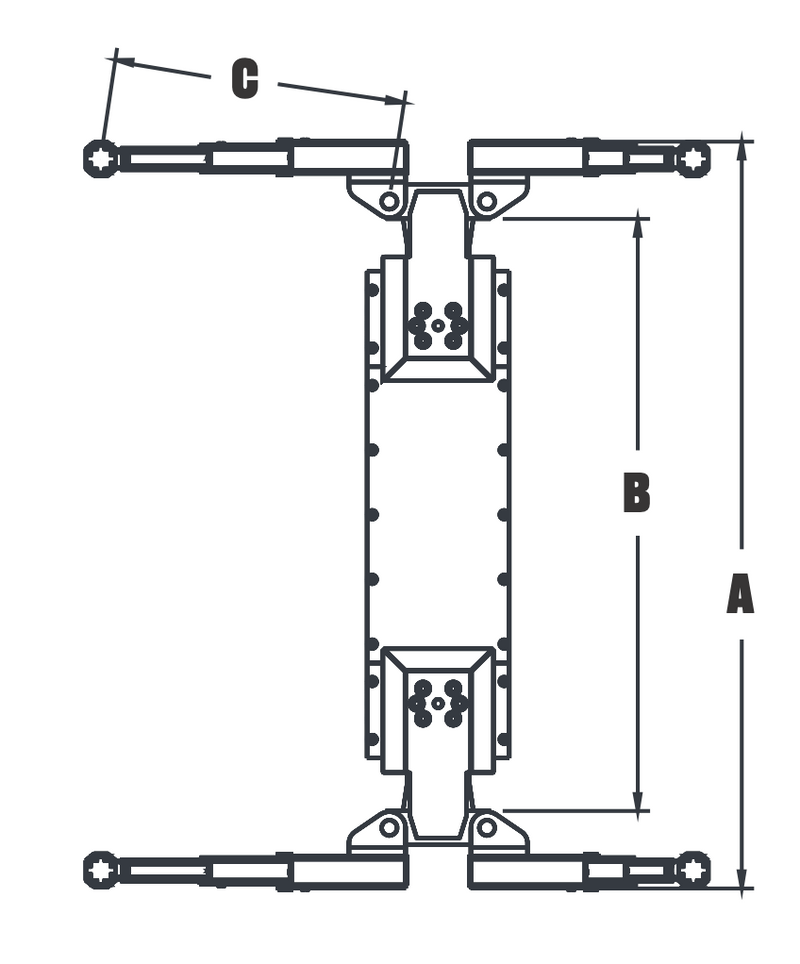

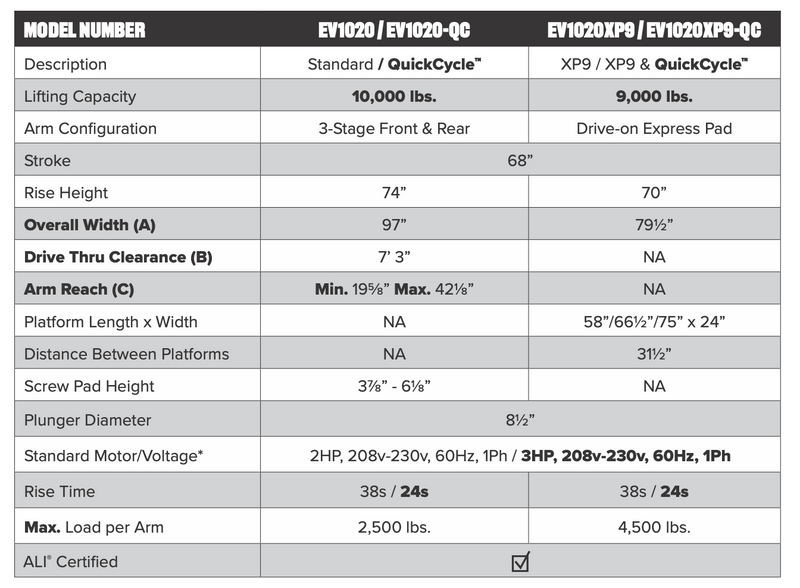

Model NumberEV1020EV1020-QCEV1020XP9EV1020XP9-QCLifting Capacity10,000 lbs.10,000 lbs.9,000 lbs.9,000 lbs.Arms3-stage front/3-stage rear3-stage front/3-stage rearn/an/aStroke68”68”68”68”Rise Height74”74”70”70”Width Overall97"97"79.75”79.75”Drive-Thru Clearance87”87”--Reach (Arm Minimum)19.625”19.625”--Reach (Arm Maximum)42.125”42.125”--Screw Pad Height3.875” - 6”3.875” - 6”Minimum Pad Height: 2.25"Minimum Pad Height: 2.25"Capacity2,500 lbs. per arm2,500 lbs. per arm4,500 lb. per pad4,500 lb. per padGuide Plunger Diam.8.5”8.5”8.5”8.5"Motor / Voltage2HP, 208v-230v, 60Hz, 1Ph2HP, 208v-230v, 60Hz, 1Ph2HP, 208v-230v, 60Hz, 1Ph2HP, 208v-230v, 60Hz, 1PhSpeed of Rise38 s27 s38 s27 sAir Required90 - 120 psi90 - 120 psi90 - 120 psi90 - 120 psiALI/ETL CertifiedYesYesYesYesSuper Structure ColorsRed, Blue, BlackRed, Blue, BlackBlackBlack

Shipping Policy Estimated Processing & Shipping Times for Orders.

Your Lift ships on a Flat bed Freight Truck company. It is taken to your location on a 48 foot semi truck. Please note the following before making your purchase:

• You are responsilbe for unloading the lift from the truck. The truck driver does not unload it for you.
• Lift Gate delivery service is not available for auto lifts.
• You cannot unload an lift from the truck by hand. You must have machinery that can lift the full weight on your auto lift for unloading from the truck. Fork Lift.
• If you cannot unload from a truck, we can ship to our carrier's nearest freight terminal for you to pickup with a trailer or moving van.
• You are responsible for calling the freight company to make a delivery appointment. We don't know your schedule so we can't do this for you.

When your lift ships, we will email you the carrier information and tracking number. Freight shipping is slower than small package shipping and can take 12-21 days depending on your location so please be patient.

LIMITED WARRANTY

Challenger Lifts, Inc. lifts are guaranteed to the original owner. Challenger Lifts, Inc. shall repair or replace, at Challenger Lifts, Inc.option, for the full warranty period those parts that prove upon inspection to be defective and pay for reasonable costs of transportation and/or labor for replacement of said parts for the warranty period stated below. This warranty shall not apply unless the product is installed, used and maintained according to Challenger Lifts, Inc.specifications set forth in Challenger Lifts, Inc. installation, operation, and maintenance instructions. Use of any unapproved parts or accessories will void your warranty. This limited warranty extends only to the original purchaser and is not transferable. This warranty is valid only if the product has been registered with Challenger Lifts, Inc., www.challengerlifts.com.

This warranty does not cover normal maintenance or adjustments, damage or malfunction caused by improper handling, installation, abuse, misuse, negligence, carelessness of operation, or normal wear and tear. In addition, this warranty does not cover equipment when repairs have been attempted or made by anyone other than a Challenger Lifts, Inc. authorized service representative.

This warranty is exclusive and is in lieu of all other warranties expressed or implied including any implied warranty of fitness for a particular purpose, which implied warranties are expressly excluded. No employee, agent, representative, dealer or other person or entity is authorized to give any warranties of any nature on behalf of Challenger Lifts, Inc.

The remedies described are exclusive and in no event shall Challenger Lifts, Inc. Inc. be liable for special, consequential or incidental damages for the breach of or delay in performance of the warranty. This warranty shall be governed by the Commonwealth of Kentucky, and shall be subject to the exclusive jurisdiction of the Court in the Commonwealth of Kentucky in the County of Jefferson.

Functional parts are considered the power units, cylinders, sheaves, sheave pins, hoses, hydraulic & pneumatic fittings, cables, adapters, latches, valves, and controls.

Structural parts are considered the carriage, columns, column extensions, overhead beams, arms, cross beams, runways, wheel stops, ramps, bolsters, sync rails, and plungers.

Note: Warranty registration must be completed online at https://www.challengerlifts.com/register-your-lift/ or warranty period will beging from invoice date of lift purchase.
