• 8,000 lbs. Capacity
• Extended Lift Height & Length
• Cable Driven
• Single Point Manual Lock Release
• Adjustable Locking Positions
• Slack Cable Safety
• Steel Approach Ramps
• Fits in larger residential garages
• Great for storage of many full-size trucks
• Includes Drip Trays, Jack Tray & poly Caster Kit

Lift Now,
Pay Over Time

with the Synchrony Car Care™ Credit Card.

Convenient monthly payments make your equipment purchase simple.

No Interest if Paid in Full Within 6 or 12 Months 1

On purchases of $199-$749.99 for 6 Months or $750 or more for 12 Months made with the Synchrony Car Care credit card. Interest will be charged to your account from the purchase date if the promotional balance is not paid in full within 6 or 12 Months. Minimum monthly payments required.

APPLY NOW

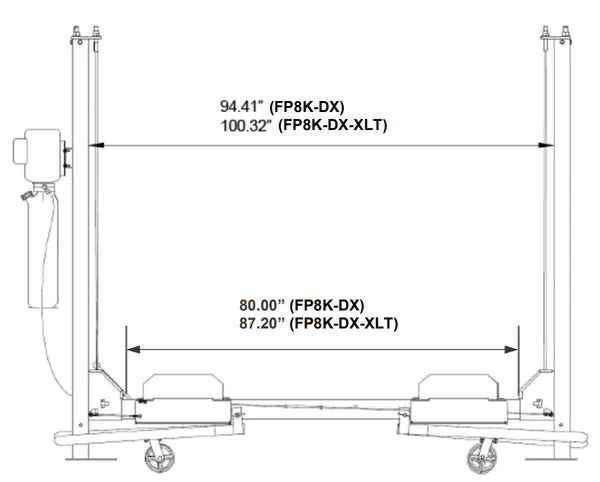

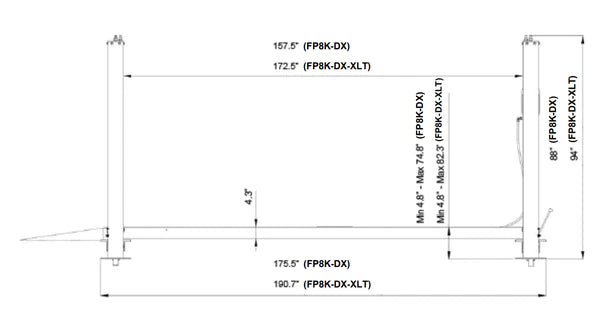

Lift ModelFP8K-DX-XLTCapacity8,000 lbs.Overall Length w/Ramp222-1/2″Overall Width(Outside Base Plates)109-3/8″Overall Height94″Lifting Height82-1/4″Width Between Posts100-5/16″Length of Runways180-1/2″Width of Runways18-5/8″Lifting Speed100SMaximum Clearance under Track78″Cable Diameter3/8″Base Plate Size10″ x 12″Lock Position12Ship Weight1,800 lbsPower115V – 20 Amp – 1PH

Shipping Policy Estimated Processing & Shipping Times for Orders.

Your Lift ships on a Flat bed Freight Truck company. It is taken to your location on a 48 foot semi truck. Please note the following before making your purchase:

• You are responsilbe for unloading the lift from the truck. The truck driver does not unload it for you.
• Lift Gate delivery service is not available for auto lifts.
• You cannot unload an lift from the truck by hand. You must have machinery that can lift the full weight on your auto lift for unloading from the truck. Fork Lift.
• If you cannot unload from a truck, we can ship to our carrier's nearest freight terminal for you to pickup with a trailer or moving van.
• You are responsible for calling the freight company to make a delivery appointment. We don't know your schedule so we can't do this for you.

When your lift ships, we will email you the carrier information and tracking number. Freight shipping is slower than small package shipping and can take 12-21 days depending on your location so please be patient.

LOCAL PICKUP AVAILABLE

FLORIDA AND MULTIPLE SATELLITE LOCATIONS ALL AROUND UNITED STATES

Warehouse Pickup Locations (No shipping charge):

Temecula, CA 92590

Orlando, FL 32824

Kennesaw, GA 30144

Elwood, IN 46036

Maple Grove, MN 55311

Reidsville, NC 27320

Bohemia, NY 11715

Reading, PA 19605

Alvarado, TX 76009

West Valley City, UT 84119

 You will need to call the warehouse to schedule a pickup 48 hours in advance.

**NOTE:  MUST TAKE A SOLID FLOOR TRAILER (NO OPEN CENTER CAR HAULERS) LARGE ENOUGH TO ACCOMMODATE THE PURCHASED PRODUCT

*** Orders will not be loaded into the bed of a pickup

LIMITED WARRANTY

Structural Warranty:

The following parts and structural components carry a five year warranty:

Columns Top Rail Beam Uprights Arms Swivel Pins Legs Carriages Tracks Overhead Beam Cross Rails

Limited One-Year Warranty:

Tuxedo Distributors, LLC (“Tuxedo”) offers a limited one-year warranty to the original purchaser of Tuxedo lifts and Wheel Service in the United States and Canada. Tuxedo will replace, without charge, any part found defective in materials or workmanship under normal use, for a period of one year after purchase. The purchaser is responsible for all shipping charges. This warranty does not apply to equipment that has been improperly installed or altered or that has not been operated or maintained according to specifications.

Other Limitations:

This warranty does not cover:

1. Parts needed for normal maintenance
2. Wear parts, including but not limited to cables, slider blocks, chains, rubber pads and pulleys
3. Replacement of lift and tire changer cylinders after the first 30 days. A seal kit and installationinstructions will be sent for repairs thereafter.
4. On-site labor

Upon receipt, the customer must visually inspect the equipment for any potential freight damage before signing clear on the shipping receipt. Freight damage is not considered a warranty issue and therefore must be noted for any potential recovery with the shipping company.

The customer is required to notify Tuxedo of any missing parts within 72 hours. Timely notification must be received to be covered under warranty.

Tuxedo will replace any defective part under warranty at no charge as soon as such parts become available from the manufacturer. No guarantee is given as to the immediate availability of replacement parts.

Tuxedo reserves the right to make improvements and/or design changes to its lifts without any obligation to previously sold, assembled or fabricated equipment.

There is no other express warranty on the Tuxedo lifts and this warranty is exclusive of and in lieu of all other warranties, expressed or implied, including all warranties of merchantability and fitness for a particular purpose.

To the fullest extent allowed by law, Tuxedo shall not be liable for loss of use, cost of cover, lost profits, inconvenience, lost time, commercial loss or other incidental or consequential damages.

This Limited Warranty is granted to the original purchaser only and is not transferable or assignable.

Some states do not allow exclusion or limitation of consequential damages or how long an implied warranty lasts, so the above limitations and exclusions may not apply. This warranty gives you specific legal rights and you may have other rights, which may vary from state to state.
